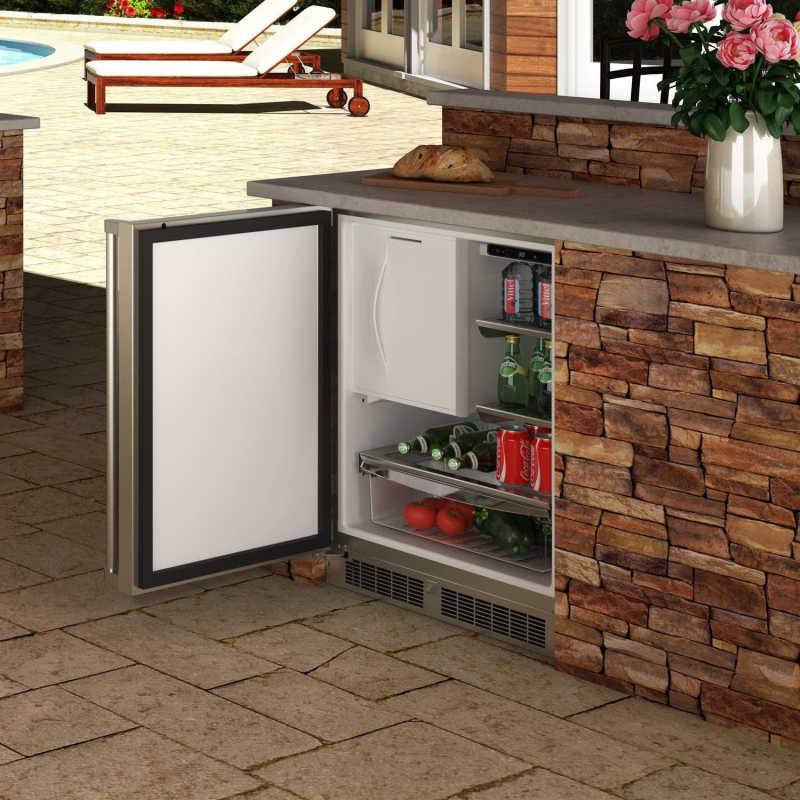

Marvel 24-Inch 4.9 Cu. Ft. Outdoor Refrigerator Freezer

Product image 1
1 / 3

Marvel 24-Inch 4.9 Cu. Ft. Outdoor Refrigerator Freezer

Marvel Outdoor 24-Inch Stainless Steel Refrigerator-Freezer with Door Lock & MaxStore Bin — Built-In Undercounter Combination Unit (MORF224-SS31A)

Key Features

  • Refrigerator + Freezer in One Unit: The only outdoor unit in the Marvel Outdoor Collection that combines a refrigerator and a freezer behind a single door — 3.9 cu. ft. of refrigerator space plus a dedicated 1.0 cu. ft. freezer compartment, totaling 4.9 cu. ft. of combined capacity.
  • 3.9 Cu. Ft. Refrigerator — 72 Cans: The refrigerator section stores up to 72 standard 12-oz cans, or any combination of beverages, food, condiments, and ingredients at temperatures from 34°F to 42°F.
  • 1.0 Cu. Ft. Freezer — 12 Pints of Ice Cream: The built-in freezer compartment holds up to 12 pints of ice cream and operates from -5°F to 0°F — true freezer temperatures for frozen desserts, ice packs, frozen appetizers, ice cream bars, and anything else that needs to stay frozen at your outdoor kitchen.
  • Two Half-Width Cantilevered Shelves & One Full-Width Fixed Shelf: The refrigerator section includes 2 half-width cantilevered stainless steel shelves and 1 full-width fixed shelf — the half-width shelves create open vertical space alongside them for tall bottles, pitchers, and oversized items.
  • MaxStore Bin: Dedicated organizer bin keeps loose items — condiments, cheese, snacks, garnishes — contained and accessible instead of scattered across shelves.
  • Dynamic Cooling Technology: Marvel's advanced cooling system delivers rapid cool-down after door openings, frost-free operation that eliminates manual defrosting, and consistent temperature stability across both the refrigerator and freezer compartments.
  • Digital Controls — Dual Temperature Zones: The digital control panel manages both the refrigerator (34°F to 42°F) and freezer (-5°F to 0°F) compartments independently, allowing you to optimize each zone for its contents.
  • Door Ajar & Temperature Alerts: Audible alerts sound when the door is left open and when the internal temperature rises or falls outside the set range in either compartment.
  • Arctic White LED Theater-Style Lighting: Dramatic theater-style interior LED lighting illuminates the refrigerator section with clean, even light for easy item identification, day or night.
  • Arctic White Interior: Clean, bright interior finish enhances visibility and provides a stain-resistant surface that wipes down easily.
  • Door Lock: Integrated door lock secures both the refrigerator and freezer contents simultaneously.
  • Sabbath Mode: Disables interior lights, alarms, and digital displays while maintaining consistent temperature performance in both compartments.
  • ENERGY STAR Certified: Meets ENERGY STAR energy efficiency standards — delivering dual-compartment refrigerator-freezer performance with reduced energy consumption.
  • Field-Reversible Door: Solid stainless steel door can be configured to open left or right during installation.
  • Designed for Outdoor Use: Engineered and rated for outdoor environments including covered patios, grill islands, poolside bars, and outdoor kitchen cabinetry.
  • Made in the USA: Designed and built in America by Marvel Refrigeration — North America's longest-standing refrigeration company, established in 1892.

The Marvel Outdoor 24-Inch Stainless Steel Refrigerator-Freezer with Door Lock & MaxStore Bin (MORF224-SS31A) solves a problem no other Marvel outdoor unit can: where do you keep frozen items at your outdoor kitchen? Ice cream for after the cookout. Frozen appetizers ready for the grill. Ice packs for the cooler. Frozen dessert bars for the kids. Every other Marvel outdoor refrigerator is an all-refrigerator — they cool, but they don't freeze. The MORF224-SS31A gives you both: a 3.9 cu. ft. refrigerator section storing up to 72 standard 12-oz cans at 34°F to 42°F, plus a dedicated 1.0 cu. ft. freezer compartment holding up to 12 pints of ice cream at -5°F to 0°F — all in a single 24-inch undercounter unit that fits the same cutout as every other Marvel 24-inch outdoor appliance. The refrigerator section includes two half-width cantilevered shelves for tall item flexibility, a full-width fixed shelf, and a MaxStore bin for loose items. Dynamic Cooling Technology maintains frost-free performance across both zones, the field-reversible door configures to any layout, and the door lock secures everything. ENERGY STAR certified, Sabbath Mode equipped, and designed and built in America with over 130 years of Marvel refrigeration expertise, the MORF224-SS31A is the only outdoor unit in the collection that keeps your food cold and your ice cream frozen.

The Only Outdoor Freezer in the Marvel Collection — Frozen Storage Where You Need It

Every other refrigerator in the Marvel Outdoor Collection is an all-refrigerator — they maintain temperatures from 34°F to 60°F, which is perfect for cold beverages, fresh food, and general refrigeration, but useless for anything that needs to stay frozen. The MORF224-SS31A changes that with a dedicated 1.0 cu. ft. freezer compartment built into the bottom of the unit, operating at true freezer temperatures from -5°F to 0°F. That's cold enough for ice cream, frozen appetizers, ice packs, frozen juice bars, popsicles, frozen meats waiting for the grill, and anything else that would melt or thaw in a standard refrigerator. The freezer holds up to 12 pints of ice cream — enough to stock a dessert station at any outdoor party. Above the freezer, the 3.9 cu. ft. refrigerator section handles everything else: up to 72 standard 12-oz cans, plus food, condiments, and ingredients at 34°F to 42°F. One unit, two temperature zones, one standard 24-inch cutout.

3.9 Cu. Ft. Refrigerator — 34°F to 42°F

The upper refrigerator section stores up to 72 standard 12-oz cans at digitally controlled temperatures from 34°F to 42°F. The narrower range compared to all-refrigerator models (which go to 60°F) reflects the unit's focus on food-safe cold storage alongside freezer capability.

1.0 Cu. Ft. Freezer — -5°F to 0°F

The bottom freezer compartment holds up to 12 pints of ice cream at true freezer temperatures from -5°F to 0°F. Store ice cream, frozen appetizers, ice packs, popsicles, frozen meats, and anything that needs to stay solidly frozen at your outdoor kitchen.

4.9 Cu. Ft. Total Combined Capacity

4.9 total cubic feet of combined refrigerator and freezer storage in a single 24-inch undercounter unit — eliminating the need for a separate outdoor freezer or constant trips to the indoor kitchen for frozen items during outdoor entertaining.

Dual-Zone Digital Controls

The digital control panel manages both the refrigerator and freezer compartments — set the refrigerator from 34°F to 42°F and the freezer from -5°F to 0°F independently for optimal performance in each zone.

Refrigerator Interior — Shelving, MaxStore Bin & Tall Item Flexibility

The MORF224-SS31A's 3.9 cu. ft. refrigerator section is organized around a three-shelf configuration that maximizes usable space above the freezer compartment. Two half-width cantilevered stainless steel shelves mount on wall brackets without center supports, holding up to 35 pounds each across 11 adjustable height positions. The half-width design is intentional: each shelf occupies only half the cabinet width, leaving the other half open for tall items like wine bottles, two-liter bottles, pitchers, and tall condiment containers. A full-width fixed shelf provides a stable platform for heavier items or full rows of cans. The MaxStore bin keeps loose items organized — condiments, cheese, snacks, and garnishes stay contained and accessible instead of rolling around on open shelves. Together, the three shelves and MaxStore bin give you organized, configurable storage that makes the most of every cubic inch above the freezer.

Two Half-Width Cantilevered Shelves

Two half-width cantilevered stainless steel shelves hold up to 35 pounds each and adjust across 11 height positions. The half-width design creates open vertical space alongside each shelf for tall bottles, pitchers, and oversized items that won't fit under a full-width shelf.

MaxStore Bin

The dedicated MaxStore bin organizes loose items — condiment packets, cheese wedges, garnish containers, small snacks, and anything that would otherwise scatter across open shelves. Keeps frequently accessed small items contained and within easy reach.

Field-Reversible Door

The solid stainless steel door can be configured to open left or right during installation — one model number accommodates any cabinet layout, any traffic flow, any outdoor kitchen configuration. No separate left-swing or right-swing models to order.

Door Lock

The integrated door lock secures both the refrigerator and freezer contents simultaneously — critical for outdoor installations where the unit is accessible to guests, children, or service staff when the outdoor kitchen is unattended.

Dynamic Cooling Technology & Smart Features — Dual-Zone Outdoor Performance

Managing two distinct temperature zones — one for refrigeration, one for freezing — in a single outdoor undercounter unit is a demanding engineering challenge, especially when ambient outdoor temperatures fluctuate widely and the door is opened frequently during entertaining. The MORF224-SS31A addresses this through Dynamic Cooling Technology optimized for dual-zone operation. Rapid cool-down recovers both zones quickly after each door opening. Frost-free operation prevents ice buildup in both the refrigerator and freezer compartments — essential in humid outdoor environments. Temperature stability maintains each zone at its set temperature independently, so the freezer stays at -5°F to 0°F regardless of how often the refrigerator section is accessed. Arctic white LED theater-style lighting illuminates the refrigerator section, Sabbath Mode maintains operation while disabling lights and displays, and ENERGY STAR certification confirms that dual-zone performance comes with energy efficiency.

Arctic White LED Theater-Style Lighting

Theater-style LED lighting illuminates the refrigerator section with dramatic, even light — making item identification effortless during evening and nighttime outdoor entertaining. The arctic white LEDs provide clean, true-to-life lighting against the arctic white interior.

ENERGY STAR Certified

The MORF224-SS31A meets ENERGY STAR energy efficiency requirements — delivering full dual-zone refrigerator-freezer performance in an outdoor-rated undercounter unit with reduced energy consumption. Dual temperature zones, single energy footprint.

Refrigerator-Freezer vs. All-Refrigerator — Choosing the Right Marvel Outdoor Unit

The MORF224-SS31A is the only Marvel outdoor unit that includes a freezer. If you need frozen storage at your outdoor kitchen — ice cream, frozen appetizers, ice packs, frozen meats — the MORF224 is the only choice without adding a separate standalone freezer. The trade-off is refrigerator capacity: at 3.9 cu. ft. (72 cans), the refrigerator section is smaller than the all-refrigerator MORE124 (5.3 cu. ft., 154 cans) and MORE224 (5.1 cu. ft., 146 cans), and the temperature range is narrower (34°F–42°F vs. 34°F–60°F). If you don't need freezer capability and want maximum refrigerator space or a wider temperature range, choose an all-refrigerator model. If frozen storage is essential, the MORF224-SS31A delivers it in the same 24-inch cutout.

Feature

MORF224 — Fridge + Freezer

MORE124 — All-Refrigerator

MORE224 — All-Refrigerator
Freezer Yes — 1.0 cu. ft. (-5°F to 0°F) No No
Refrigerator Capacity 3.9 cu. ft. 5.3 cu. ft. 5.1 cu. ft.
Total Capacity 4.9 cu. ft. 5.3 cu. ft. 5.1 cu. ft.
12-oz Cans 72 154 146
Refrigerator Temp Range 34°F–42°F 34°F–60°F 34°F–60°F
Shelves 2 Half-Width + 1 Fixed 2 Cantilevered SS 3 — Glide-Out, Half-Width, Glass
MaxStore Bin Yes No Yes
Door Reversible Yes Yes No — Separate L/R Models
Best For Frozen storage + refrigeration in one unit Max refrigerator capacity Interior organization, mixed items

The Marvel Difference — Over 130 Years of Refrigeration Expertise

Marvel Refrigeration has been manufacturing refrigeration products since 1892 — making them North America's longest-standing refrigeration company with over 130 years of continuous expertise. Every MORF224-SS31A outdoor refrigerator-freezer is designed and built in America to Marvel's 15 Distinct Quality Details — a set of engineering and manufacturing standards that define every product in the lineup. As part of the Middleby Residential luxury appliance portfolio, Marvel maintains the craftsmanship, materials, and performance testing that serious outdoor kitchens demand. The Marvel Outdoor Collection — including refrigerators, refrigerator-freezers, refrigerated drawers, beverage centers, wine refrigerators, clear ice machines, nugget ice machines, and crescent ice makers — gives you a complete outdoor refrigeration ecosystem from one manufacturer with the heritage and expertise to back every unit. Visit MarvelRefrigeration.com to explore the full Marvel Outdoor Collection.

Marvel Warranty Coverage — MORF224-SS31A

Marvel Refrigeration Limited Warranty

Marvel warrants to the original purchaser that the outdoor refrigerator-freezer and all parts are free from defects in material and workmanship under normal residential use. Full unit warranty: one (1) year from the date of original purchase, including parts and labor. Cosmetic defects are covered for sixty (60) days from purchase. Sealed system warranty: five (5) years covering the compressor, condenser, evaporator, drier, and all connecting tubing (parts only, labor not included). This warranty applies only to the original purchaser and is non-transferable. The warranty applies to units operated outside only if designed for outdoor use by model and serial number. Exclusions include non-residential use, negligence, accident, improper use, maintenance, installation, service, repair, acts of God, consumable parts (water filters, light bulbs), and food or beverage loss. All service must be performed by a Marvel factory authorized servicer. Refer to the manufacturer's warranty document for complete terms and conditions.

Manufacturer Information & Documentation

Download official Marvel specification sheets and warranty documents for the MORF224-SS31A 24-inch outdoor refrigerator-freezer with door lock and MaxStore bin.

Frequently Asked Questions — Marvel Outdoor 24-Inch Refrigerator-Freezer

Can the Marvel MORF224-SS31A be used outdoors?

Yes. The MORF224-SS31A is part of the Marvel Outdoor Collection and is specifically designed and rated for outdoor use. Both the refrigerator and freezer compartments are engineered to perform in outdoor kitchens, covered patios, grill islands, and poolside entertainment areas.

How large is the freezer compartment?

The freezer compartment is 1.0 cu. ft. and holds up to 12 pints of ice cream. It operates at true freezer temperatures from -5°F to 0°F — cold enough for ice cream, frozen appetizers, ice packs, popsicles, frozen meats, and any other items that need to stay solidly frozen.

What is the refrigerator temperature range?

The refrigerator section adjusts from 34°F to 42°F through the digital control panel. This is a narrower range than Marvel's all-refrigerator models (which go to 60°F) because the MORF224 is optimized for food-safe cold storage alongside true freezer capability. If you need temperatures above 42°F — for wine holding or cellar-temperature storage, for example — choose an all-refrigerator model instead.

Can the refrigerator and freezer temperatures be set independently?

The digital control panel manages the refrigerator section (34°F to 42°F) and the freezer section (-5°F to 0°F) as two distinct temperature zones. Both zones are controlled through the same digital interface.

How many cans does the refrigerator section hold?

The 3.9 cu. ft. refrigerator section holds up to 72 standard 12-oz cans when configured for maximum can storage. The actual count depends on how you configure the shelves, MaxStore bin, and whether you're also storing food, bottles, or other items alongside cans.

Why does this unit have a narrower refrigerator temperature range than other Marvel outdoor refrigerators?

Marvel's all-refrigerator outdoor models (MORE124, MORE224) range from 34°F to 60°F because they're designed for versatile single-zone use including cellar-temperature wine holding. The MORF224's refrigerator section ranges from 34°F to 42°F because the unit is optimized for dual-zone operation — maintaining both food-safe refrigerator temperatures and true freezer temperatures (-5°F to 0°F) simultaneously. The narrower refrigerator range reflects the engineering requirements of the integrated freezer compartment.

What are the cutout dimensions for the MORF224-SS31A?

The rough-in (cutout) dimensions are 24" W × 24" D × 34" to 35" H — the same cutout as every other Marvel 24-inch outdoor unit. The cabinet dimensions are 23-7/8" W × 23-3/4" D × 33-3/4" to 34-3/4" H. Always refer to the manufacturer's specification sheet for the most current installation requirements.

Can the door swing be reversed?

Yes. The MORF224-SS31A features a field-reversible door that can be configured to open from the left or right during installation. One model number accommodates any cabinet layout.

Does this unit have a door lock?

Yes. The MORF224-SS31A includes an integrated door lock that secures both the refrigerator and freezer contents behind the single solid stainless steel door.

What warranty covers the MORF224-SS31A?

The MORF224-SS31A is covered by Marvel's standard warranty: one (1) year parts and labor from the date of original purchase, plus a five (5) year sealed system warranty covering the compressor, condenser, evaporator, drier, and all connecting tubing (parts only). Cosmetic defects are covered for 60 days. The warranty applies to the original purchaser only and is non-transferable. See the complete Marvel warranty document for full terms and conditions.
Specs & Dimensions

Marvel Outdoor 24-Inch Stainless Steel Refrigerator-Freezer with Door Lock & MaxStore Bin
Manufacturer Marvel Refrigeration (Middleby Residential)
Model Number MORF224-SS31A
Collection Marvel Outdoor Collection
UPC Code Contact Manufacturer
Indoor / Outdoor Rated Outdoor Use — Designed for Outdoor Installation
Configuration Built-In Undercounter — Refrigerator-Freezer Combination
Product Type Outdoor Refrigerator-Freezer (Food & Beverage Storage + Frozen Storage)

Capacity & Storage
Total Capacity 4.9 cu. ft. (3.9 cu. ft. Refrigerator + 1.0 cu. ft. Freezer)
Refrigerator Capacity 3.9 cu. ft. — Up to 72 Cans (12-oz)
Freezer Capacity 1.0 cu. ft. — Up to 12 Pints of Ice Cream
Interior Shelves (Refrigerator) 3 — 2 Half-Width Cantilevered Stainless Steel, 1 Full-Width Fixed
Shelf Weight Capacity Up to 35 lbs (Cantilevered Shelves)
Adjustable Shelf Heights 11 Positions
MaxStore Bin Yes — Organizes Loose Items

Temperature & Cooling
Refrigerator Temperature Range 34°F to 42°F
Freezer Temperature Range -5°F to 0°F
Temperature Control Digital Controls — Dual-Zone (Refrigerator & Freezer Independently Controlled)
Cooling System Dynamic Cooling Technology (Rapid Cool-Down, Frost-Free, Temperature Stability)
Defrost Type Frost-Free (Automatic)

Dimensions & Weight
Width 23-7/8"
Depth (Without Door) 23-3/4"
Depth (With Door) 26-1/4"
Height 33-3/4" to 34-3/4"
Height (With Top Plate) 46-3/8"
Door Protrusion 26-3/8"
Shipping Weight 160 lbs
Shipping Dimensions 28" W × 31" D × 37" H

Cutout (Rough-In) Dimensions
Cutout Width 24"
Cutout Depth 24"
Cutout Height 34" to 35"

Controls & Features
Control Type Digital — Dual-Zone
Alerts Door Ajar, High/Low Temperature
Sabbath Mode Yes
Interior Lighting Arctic White LED Theater-Style
Door Lock Yes
Door Swing Field-Reversible (Left or Right)

Exterior & Interior
Exterior Material Stainless Steel
Door Style Solid Stainless Steel
Interior Color Arctic White

Electrical & Refrigerant
Voltage / Frequency / Amperage 115V / 60 Hz / 15A
Cord Length 6 ft
Refrigerant Type R-600a (Isobutane)
ENERGY STAR Yes
Eco Friendly Design Yes

Warranty
Parts & Labor Warranty 1 Year
Sealed System Warranty 5 Years (Compressor, Condenser, Evaporator, Drier & Connecting Tubing — Parts Only)
Cosmetic Defects 60 Days from Date of Purchase

Manufacturer
Brand Marvel Refrigeration
Parent Company Middleby Residential
Country of Origin USA (Designed & Built in America)
Customer Service +616.754.5601 | techsupport@MarvelRefrigeration.com
Website MarvelRefrigeration.com

Documentation & Resources
Specification Sheet Download MORF224 Spec Sheet
Warranty Document Download Marvel Warranty
